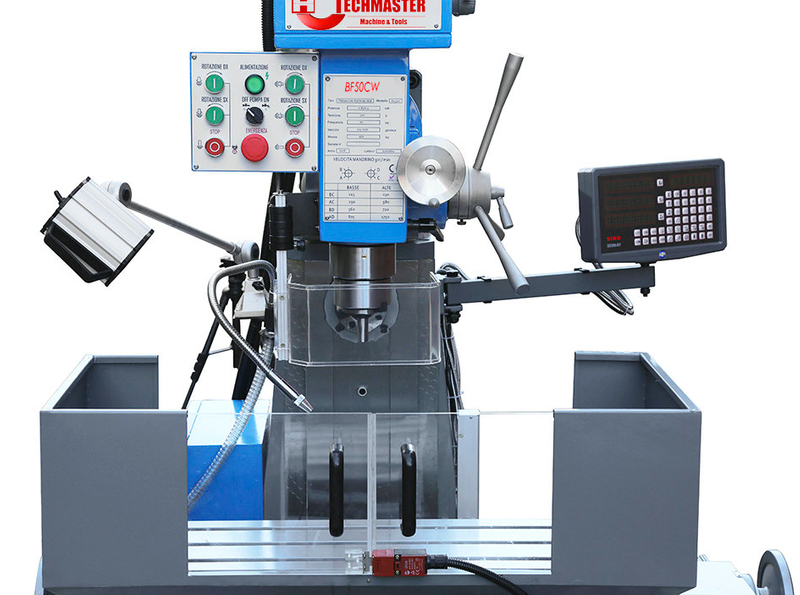

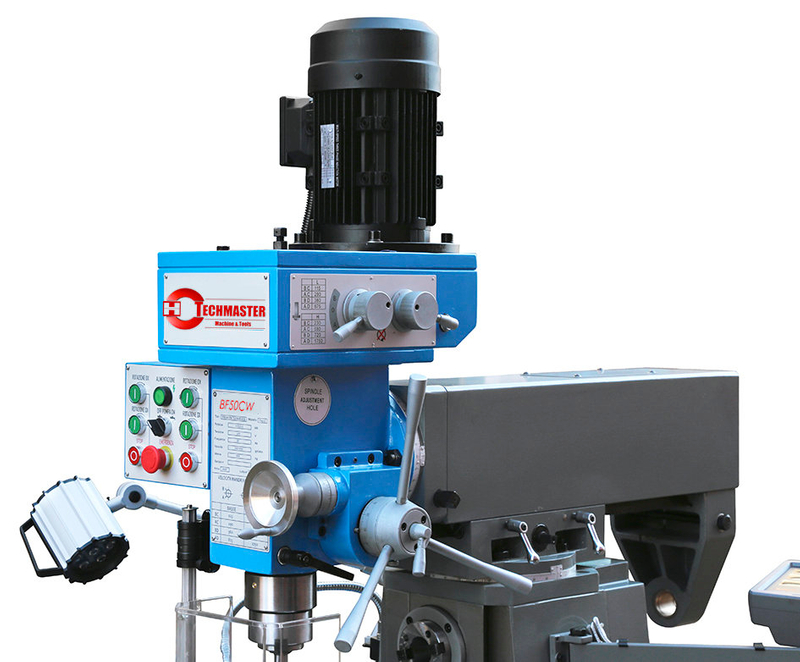

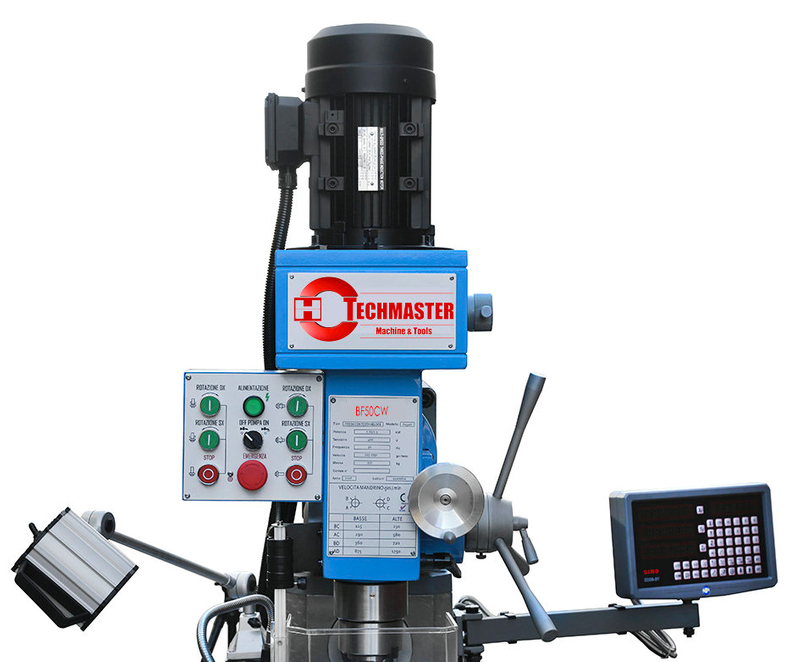

BF 50CW FEATURES: Gear drive spindle stock with connection of dovetail sliding way to square column
Spindle runs in precision gear box with oil, low noise
Spindle head can swivel ±90º left and right
Spindle runs left and right for tapping
Spindle head height adjustable through screw spindle and up or down manually
8 steps of spindle speed change over by double speed motor and gear levers
Clutch for conversion from spindle quick feed to spindle micro feed by hand
Work table power feed of gear box with 8 feed rates
Work table can swivel ±45º left and right
Dovetail guiding ways in X, Y, Z axis of robust cast iron structure
Coolant system, halogen work lamp and cabinet stand
OPTIONAL ACCESSORIES: Raster DRO System SINO for X, Y, Z Axis
Electro- Power Feed for Y axis variable feed
Electro- Power Feed for X axis variable feed instead of gear box
TECHNICAL DATA | Modelo | BF50CW |
| Capacidade de matrícula max. | 35 mm |
| Capacidade máx. | 40 mm |
| Capacidade de moagem Max.END | 25 mm |
| Capacidade de moagem Max.Face | 100 mm |
| Capacidade de tocar | M16 |
| Máx. Dist. Tabela de fuso para trabalhar | 420 mm |
| Conjunto do eixo | MT4 / ISO40 |
| Velocidade do eixo | (8) 115 - 1750 (V) / 60-1350rpm (h) |
| Viagem do fuso | 120 mm |
| Tamanho da tabela de trabalho | 800 x 240 mm |
| Tabela de trabalho Viagem x | 400 mm |
| Tabela de trabalho Viagem Y | 230 mm |
| T-slot tamanho x PCs | 14 MMX 3 |
| Energia motora | 0,85/1,5 kW (V), 1,5kW (H), 50 Hz |
| Peso líquido | 900 kg |
| Tamanho da embalagem | 1140x1340x2230mm |
| Contêiner de 20 'pés | 8 pcs |
